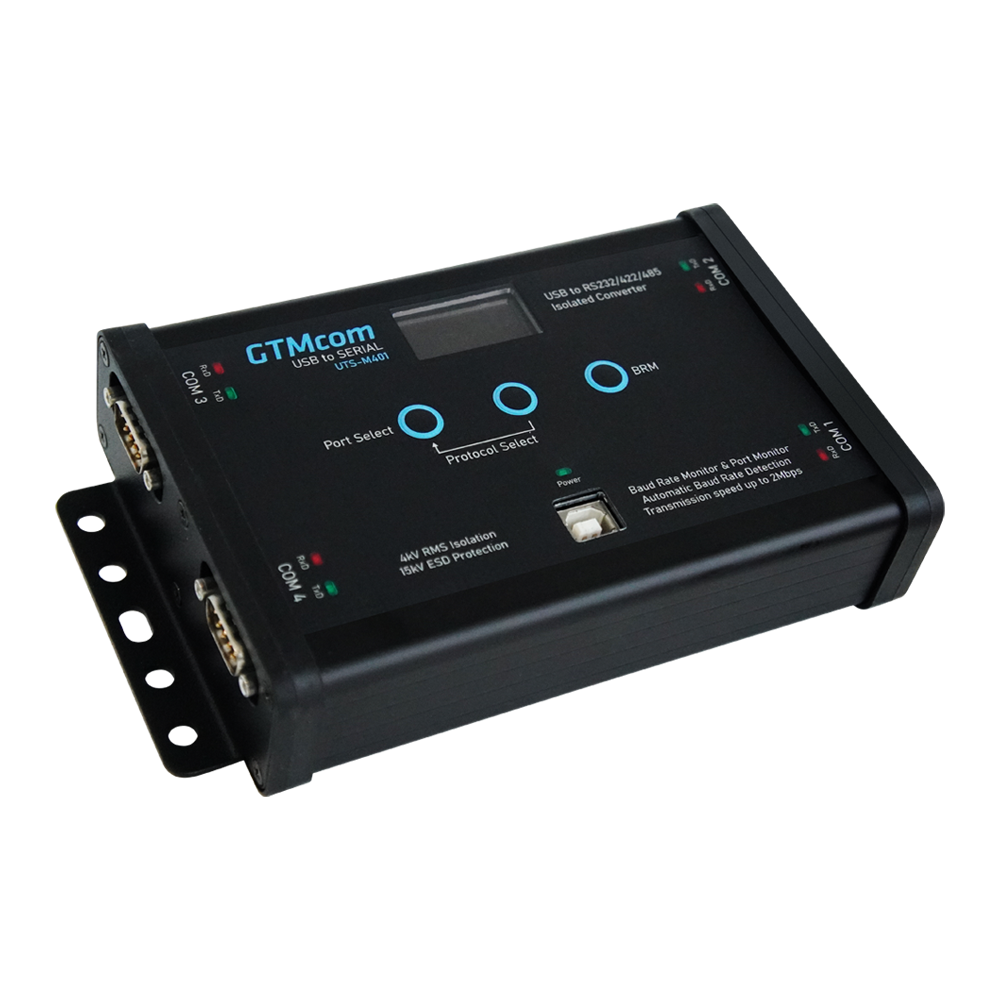

UTS-M401 USB to SERIAL CONVERTER

4 Port Multiprotocol USB-to-Serial Converter with 4kV Isolation

UTS-M401 is designed for use in the toughest environments with its robust body structure and high quality components. UTS-M401 allows you to access 4 isolated serial communication ports with a single USB connection without the need for an external power supply. It is possible to find and display the speed of your communication source with a single button.(BRM) UTS-M401 also enables users to switch inbetween ports and adjust the communication protocol with the user friendly buttons and screen.

Product Description

Strong Insulation Structure

All input and output ports are isolated from each other and the power supply to ensure the protection of the Talkers and Listeners. UTS-M401 provides 4kV RMS isolation for each port. Thus, when any serial communication source is exposed an electrical surge, you can still continue to using all other communication ports without any problems.

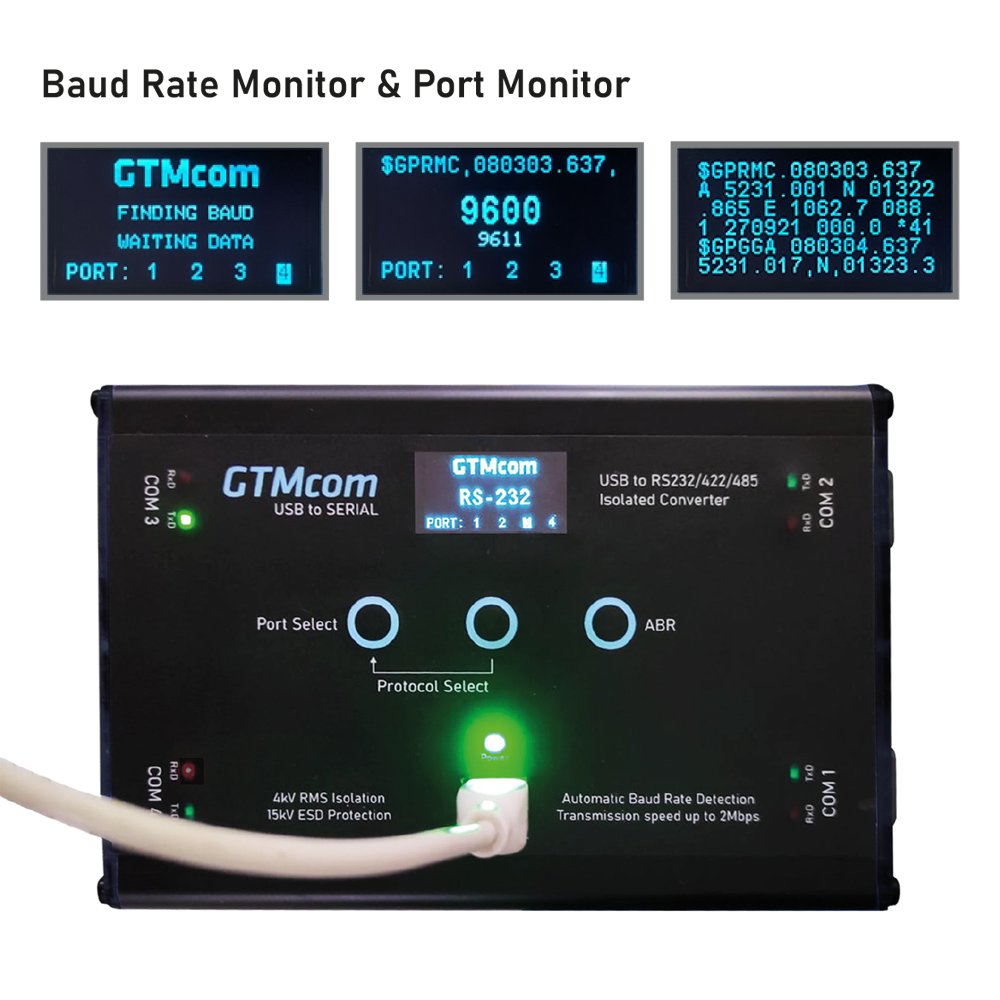

Baud Rate Monitor & Port Monitor

The BRM system of UTS-M401 finds the speed of communication sources even those that are previously unknown by the user. Regardless of the communication protocol, you can find the serial communication speed of your device and display both the communication speed and data flow by using the buttons.

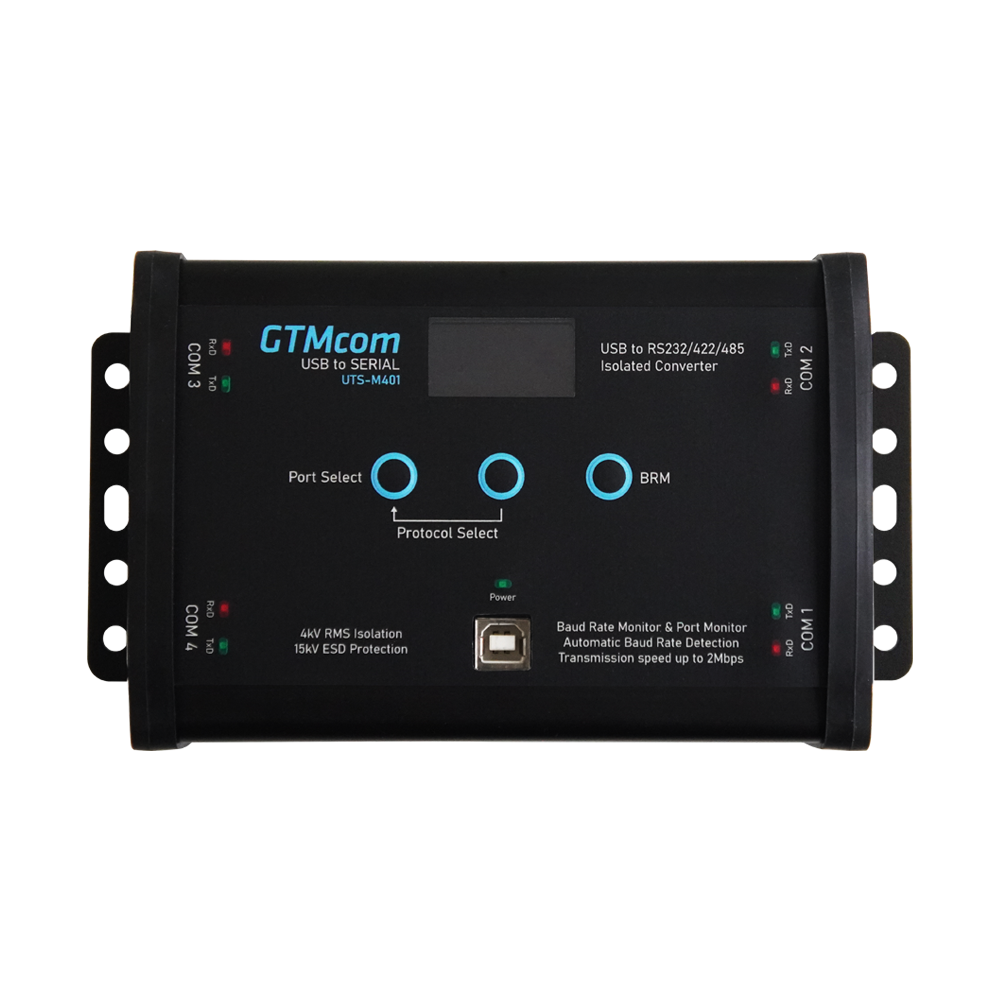

Easy Configuration

Unlike conventional products, you do not need dipswitches and complex combinations to configure the UTS-M401. You can easily set your desired communication protocol with two keys and a user-friendly screen. You can access all the required pins through the DB9 connector on the product.

UTS-M401 USB to SERIAL CONVERTER
UTS-M401 USB to SERIAL CONVERTER

Product Features

• All serial ports and USB port isolated from each other

• 4000 V RMS isolation for all ports

• Automatic Baud Rate Detection (Detecting input port baud rate)

• Baud Rate and Port Monitoring (Displayed on the screen)

• Supports hardware and software flow control (RTS/CTS)

• Supports all modem control signals (RI/DCD/DTR/DSR)

• Max Data Rate up to 1 Mbps in RS-232, 2 Mbps in RS-422/485 Modes

• Half/Full Duplex

• Enhanced Failsafe for open, shorted or terminated but idle inputs

• Allows up to 256 devices on a single comm bus (1/8th unit load)

Additional information

Overview
Product Type 4 Port Isolated USB to SERIAL
Port Connections 4x DB-9 Male / USB Type-B Female
USB Standart 1.1 and 2.0 compatible
Isolation 4 kV RMS Isolation
Protection 15kV ESD Protection
Protocol RS232 / RS422 / RS485
OS Support Windows XP, Vista, 7, 8 and 10, Linux, Mac

Mechanical / Enviromental

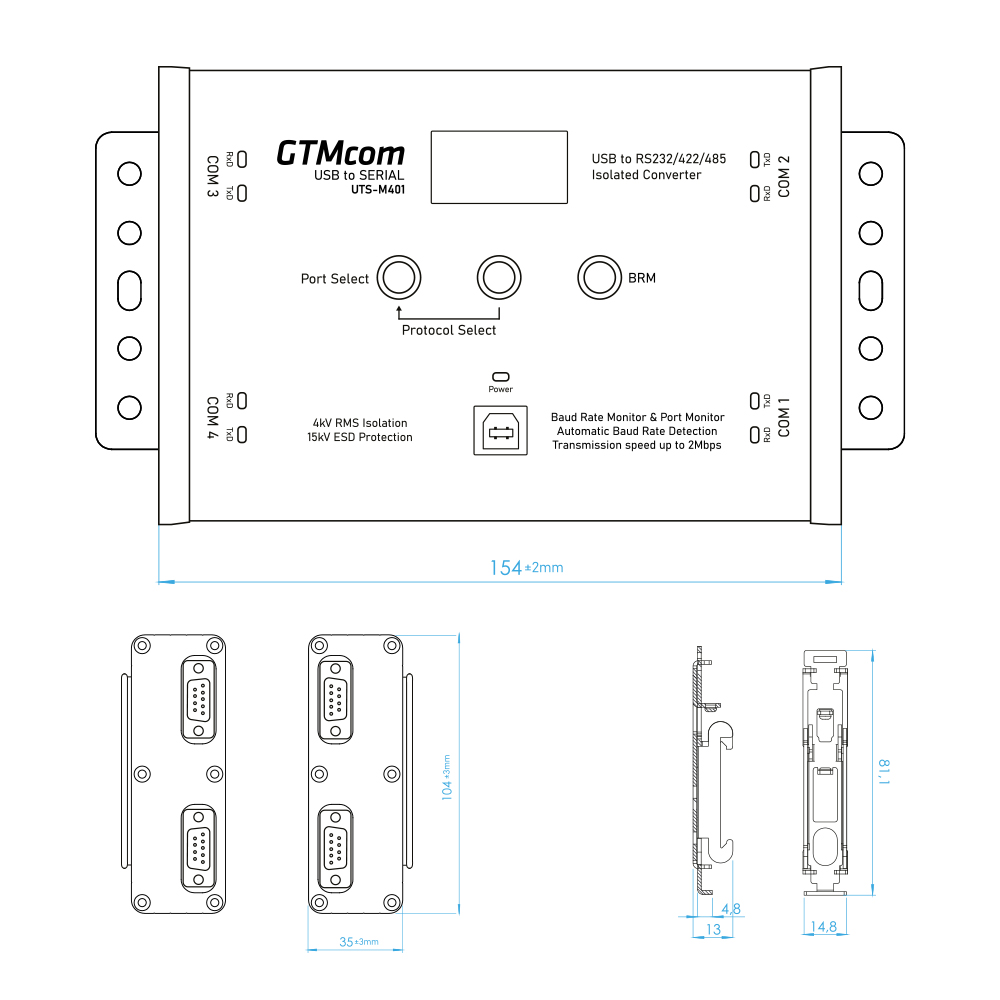

Dimensions 154±2mm(L)x104±3mm(W)x35±3mm(H)
Enclosure Aluminum 6060, Rubber Bumpers
Color Black
Temperature Range -40 to +85 °C (-40 to +185 °F)
Mount Options Din-Rail Mountable, Surface Mount, Wall Mount

Serial
Baud Rates 300 bps to 2 Mbps
Parity Odd, Even, Set, Mark and None
Data Bits 5, 6, 7, and 8
Stop Bits 1, 1.5, and 2
